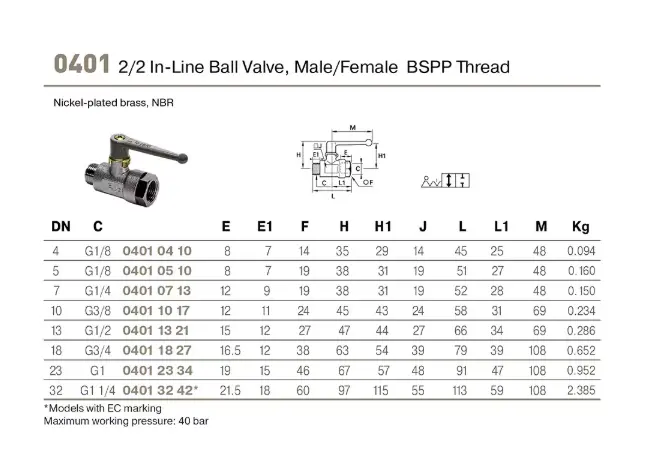

0401 18 27

DESCRIPTION: Ball Universal Series.

Minimum operating Temperature	up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C
Maximum operating Temperature	80 °C
Approximate weight	0.652kg,1.437 Ib
Orifice Size	18mm
Application	Pneumatics, Process Control, Safety, Fluid Control
Technology	Fluid & Gas Handling, Process Control, Pneumatics
Product Type	Ball Valves
Product Style	Male and Female Ball Valve
Maximum operating pressure	Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Function	2-Way
Shape	Inline
Maximum Operating Pressure	Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Diameter Nominal (DN)	18

Minimum Operating Temperature:
- up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C
Connection 1 Thread Size (metric):
- G3/4
Product Style:
- Male and Female Ball Valve
Maximum Operating Pressure:
- Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Diameter Nominal (DN):
- 18
Weight:
- 0.652 kg, 1.437 lb
