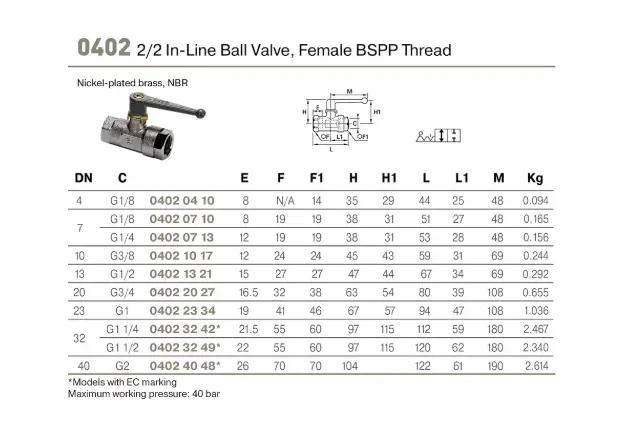

0402 07 13
DESCRIPTION: Ball Valves Universal Series
| Minimum Operating Temperature: | up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C |
| Orifice Size: | 7mm |
| Brand: | Legris |
| Division: | Low Pressure Connectors Europe Division |
| Ball Material: | na |
| Industry: | Industrial Manufacturing Equipment |
| Maximum Operating Temperature | 80°C |
| Application: | Pneumatics, Process Control, Safety, Fluid Control |
| Body Material: | Nickel-Plated Brass |
| Weight | 0.156 kg, 0.344 Ib |
| Technology: | Fluid & Gas Handling, Process Control, Pneumatics |
| Product Type: | Ball Valves |
| Product Style: | Female Ball Valve |
| Function: | 2-Way |
| Shape: | Inline |
| Maximum Operating Pressure: | Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa |
APPLICATIONS:
Pneumatics, Process Control, Safety, Fluid Control.
