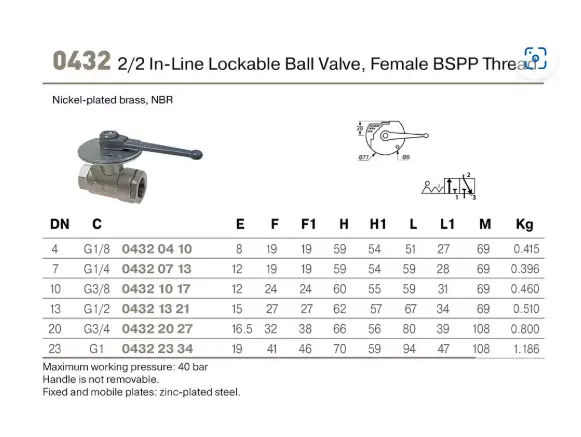

0432 10 17

Minimum Operating Temperature:	up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C
Brand:	Legris
Connection 1 Thread Size (metric):	G3/8
Orifice Size	10mm
Body Material:	Nickel-Plated Brass
Industry:	Industrial Manufacturing Equipment
Weight:	0.460 kg, 1.014 lb
Application:	Pneumatics, Process Control, Safety, Fluid Control
Maximum Operating Temperature:	80 °C
Connection 1 Thread Style:	BSPP
Technology:	Fluid & Gas Handling, Process Control, Pneumatics
Product Type:	Ball Valves ( Universal Series, Lockable)
Diameter Nominal (DN):	10
Product Style:	Lockable Female Ball Valve
Product Series:	Universal Series
Function:	2-Way
Quantity per Box:	2
Shape:	Inline (2/2 in-line lockable ball valve female)
Maximum Operating Pressure:	Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Maximum Flow Rate:	n/a L/min
Technology:	Fluid & Gas Handling, Process Control, Pneumatics

Minimum Operating Temperature:
- up to -40 °C (-40°F without movement of the handle), -4 °F, -20 °C
Connection 1 Thread Size (metric):
- G3/8
Maximum Operating Pressure:
- Vacuum to 40 bar, Vacuum to 580.16 psi, Vacuum to 4 MPa
Maximum Operating Temperature:
- 80 °C
Weight:
- 0.460 kg, 1.014 lb
