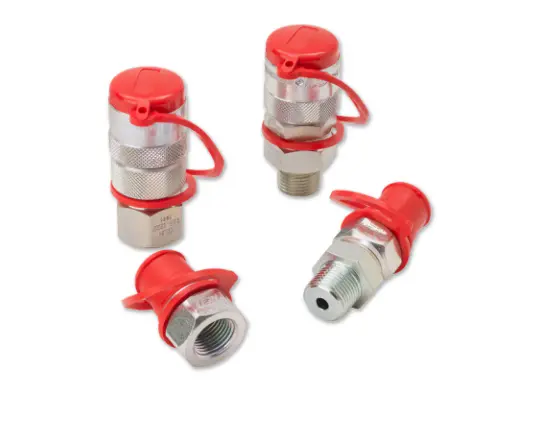

1 HCP-AV
DESCRIPTION:
Parker's C Series Quick Couplings are available with NPT, BSP and "High Pressure" thread styles with working pressures ranging from 14,500 psi to 29,000 psi.
TECHNICAL DESCRIPTION:
| Connection 1 Thread Size: | Varies |
| Media: | Hydraulic Fluids, Chemical Fluids, Lubricants |
| Valve Type: | Check Valve |
| Application: | Oilfield |
| Brand: | Parker |
| Fitting Connection Type: | Pipe Thread, BSPP, NPT / NPTF, Female Thread, Face Seal, Male Thread |
| Coupling Half: | Female, Male |
| Diameter: | 10 nom |
| Seal Material: | Buna-N |
| Connection 2 Thread Size: | Varies |
| Overall Length: | 0.08 to 1.76 inch, 2.03 to 45.72 mm |
| Hex Size: | 0.08 to 0.94 inch, 2.03 to 23.88 mm |
| Maximum Operating Pressure: | 36300 psi Dependent on style, 250 MPa Dependent on style, 2500 bar |
| Body Material: | Steel, Zinc Plated |
