101892
DESCRIPTION:

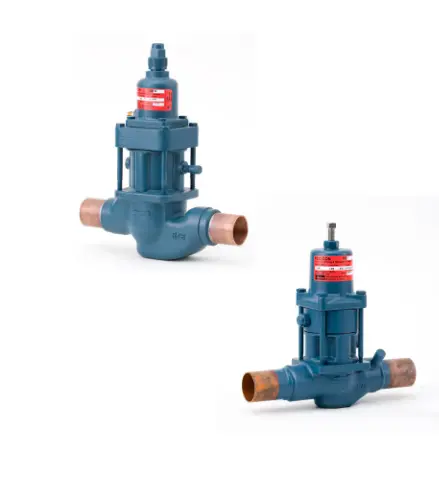

The A8 ductile iron-bodied regulators, with brazed copper couplings, maintain a constant pressure at a control point regardless of fluctuations in load, ambient conditions, or alternate diversions for flow.
TECHNICAL DESCRIPTION:
| Operating Features: | Standard |
| Port Size (mm): | 9mm |
| Connection Size (inch): | 5/8" |
| Model Number: | 3/8" A8AOE RANGE A/D 5/8" CONN |
| Port Size (inch): | 3/8" |
| Equalizer Method: | Externally Equalized |
| Connection Size (mm): | 15mm |
| Operating Style: | Outlet |
| Product Type: | A8AOE |
| Operation Type: | Outlet |
| Operating Features: | Standard |
| Equalizer Connection Type: | Externally Equalized |
| Port Size: | 9 mm, 3/8 inch |
| Connection Size: | 15 mm, 5/8 inch |
| Pressure Rating: | 250 mm-Hg to 27.6 bar, 10 inch-Hg to 400 psig |
| Power Source: | n/a |
| Weight: | 7 lb |
| Type: | A8AOE |
