104-0375062-NT-100
DESCRIPTION:

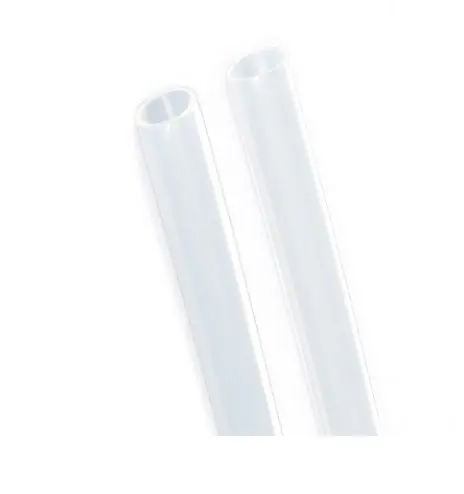

PFA Tubing - Series 104 and 204 are used when temperature and clarity are both factors. PFA tubing withstands the same high-temperatures as PTFE tubing but, like FEP tubing, is very clear and available in long continuous lengths.
TECHNICAL DESCRIPTION:
| Tube Inside Diameter: | 0.25 |
| Tube Outside Diameter: | 0.375 |
| Standard Pack Qty (ft): | 100.0 |
| Tube Wall Thickness: | 0.062 |
| Product Type: | Heavy Wall |
| Order Size: | 3/8 |
| Specifications Met: | ASTM D3307, FDA 21 CFR 177.1550, UL 94 V-0, USP Class VI |
| Application: | Air, Flow Monitoring, Gas Sampling, Semiconductor, Fluid Transfer, Laboratory, Steam Plant |
| Tube Inside Diameter: | 0.25 inch, 6.35 mm |
| Tube Outside Diameter: | 0.375 inch, 9.52 mm |
| Maximum Operating Pressure: | 320 psi, 22 bar |
| Minimum Burst Pressure: | 1160 psi, 80 bar |
| Maximum Operating Temperature: | 500 °F, 260 °C |
| Minimum Operating Temperature: | -100 °F, -75 °C |
| Minimum Bend Radius: | 1-1/2 inch, 38 mm |
| Compatible Fitting: | Compression, Compress-Align®, TrueSeal™ |
| Media: | Air, Chemicals, Water, Industrial Gases |
| Color: | Clear |
| Weight: | 0.057 lb/ft, 0.085 kg/m |
| Length per Package: | 30.5 m, 100 ft |
| Tube Material: | Perfluoroalkoxy Alkanes (PFA) |
