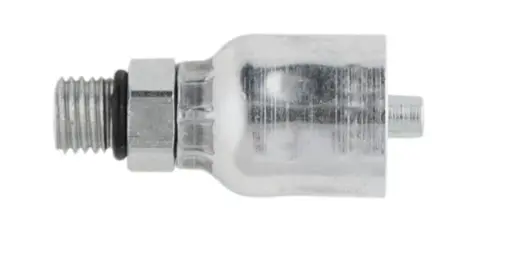

10543-16-16-I
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
Technical Specifications
| Disclaimer: | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. Refer to Fluid Connectors safety guide. |
| Materials of Construction: | Steel |
| Hose Inside Diameter: | -16 (Size), 1 inch |
| Port Size: | 1 inch |
| Hex Type: | Inch |
| Hose I.D. (size): | -16 |
| Port Connection: | 1" |
| Shape: | Straight |
| Connection Size: | 1-5/16"-12 inch Thread |
| Flange Size: | n/a |
| Product Style: | Male SAE Straight Thread with O-Ring - Rigid |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Nut Hex Size: | n/a |
| Back-Up Hex Size: | n/a |
| Product Style: | Male SAE Straight Thread with O-Ring - Rigid |
