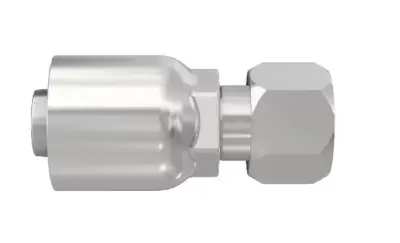

10643-10-8-SM
DESCRIPTION:
Parker’s 43 Series crimp style hydraulic fittings are renowned for its ease of assembly and are a complete range of permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
Technical Specifications
| Connection 2 Type: | Female JIC 37° - Swivel |
| Hose I.D. (size): | -8 |
| Connection 2 Size: | 5/8" |
| Body Material: | Steel |
| For Fluid Type: | Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester), Lubricants (Oils) |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation, Oil & Gas |
| Connection 1 Type: | Hose |
| Configuration: | Hose to Port |
| Application: | General Industrial, On-road Vehicles, Machine Tools, In-Plant Automotive |
| Connection 1 Size: | -8 (Size), 12.7 mm Hose I.D., 1/2 inch Hose I.D. |
| Product Type: | Crimp Fittings No-Skive |
| Technology: | Fluid & Gas Handling |
| Division: | Polymer Hose Division Europe |
| Body Material: | Steel |
| Coating: | Chromium 6 Free-plated |
| Connection 2 Type: | Female, JIC 37°, Swivel |
| Shape: | Straight |
| Shape: | Straight |
| Port Type: | DKJ |
| Specifications Met: | ISO 12151-5-SWS |
| Connection 2 Size: | 7/8"-14 inch Thread |
| Connection Length: | 40 mm (see drawing legend B) |
| Fitting Length: | 72 mm (see drawing legend A) |
| Hex Size 1: | 1 inch (see drawing legend W) |
| Hex Size 2: | 7/8 inch (see drawing legend H) |
