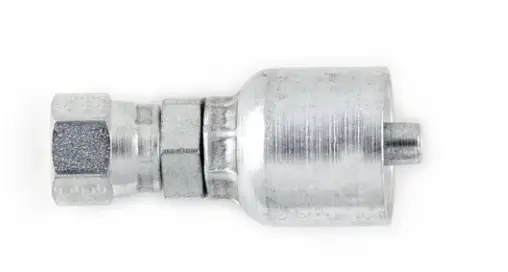

10643-12-10C-AV
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHNICAL DESCRIPTION:
| Hose Inside Diameter: | -10 (Size), 5/8 inch |
| Materials of Construction: | Steel |
| Port Connection: | 3/4" |
| Shape: | Straight |
| Hex Type: | Inch |
| Product Style: | Female JIC 37° - Swivel |
| Port Size: | 3/4 inch |
| Connection Size: | 1-1/16"-12 inch Thread |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° - Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Nut Hex Size: | 1-1/4 inch, 31.75 mm |
| Hose I.D. (size): | -10 |
| Back-Up Hex Size: | 1-1/16 inch, 26.92 mm |
