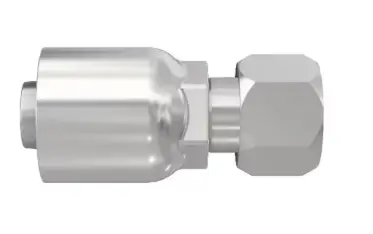

10643-12-12
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings .
TECHINICAL SPECIFICATIONS:
| Disclaimer: | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. Refer to Fluid Connectors safety guide. |
| Hose Inside Diameter: | -12 (Size), 3/4 inch |
| Materials of Construction: | Steel |
| Product Style: | Female JIC 37° - Swivel |
| Hex Type: | Inch |
| Hose I.D. (size): | -12 |
| Port Size: | 3/4 inch |
| Port Connection: | 3/4" |
| Shape: | Straight |
| Connection Size: | 1-1/16"-12 inch Thread |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° - Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Nut Hex Size: | 1-1/4 inch, 31.75 mm |
| Back-Up Hex Size: | 1-1/16 inch, 26.92 mm |
Exceed MSHA Accepted ISO 12151-5
