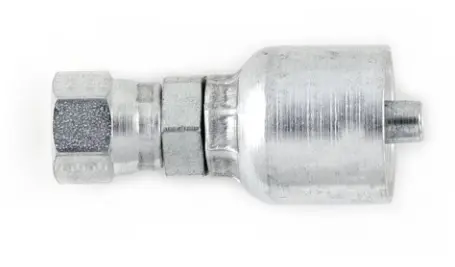

10643-6-4-AV
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHINICAL DESCRIPTION:
Technical Specifications
| Hose Inside Diameter: | -4 (Size), 1/4 inch |
| Materials of Construction: | Steel |
| Shape: | Straight |
| Port Size: | 3/8 inch |
| Hex Type: | Inch |
| Port Connection: | 3/8" |
| Product Style: | Female JIC 37° - Swivel |
| Connection Size: | 9/16"-18 inch Thread, UNF |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° - Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Hose I.D. (size): | -4 |
| Nut Hex Size: | 11/16 inch, 17 mm |
| Back-Up Hex Size: | 9/16 inch, 14 mm |
