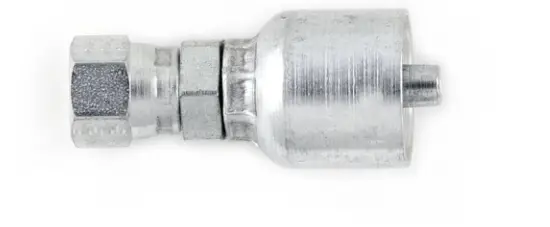

10643-8-8
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHNICAL DESCRIPTION:
| Materials of Construction: | Steel |
| Hose Inside Diameter: | -8 (Size), 1/2 inch |
| Shape: | Straight |
| Product Style: | Female JIC 37° - Swivel |
| Port Size: | 1/2 inch |
| Hex Type: | Inch |
| Port Connection: | 1/2" |
| Connection Size: | 3/4"-16 inch Thread |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° - Swivel |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Nut Hex Size: | 7/8 inch, 22 mm |
| Hose I.D. (size): | -8 |
| Back-Up Hex Size: | 13/16 inch, 20.64 mm |
