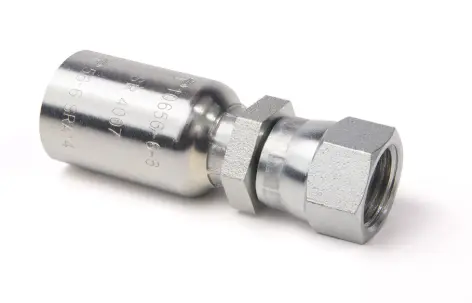

10656-4-4C-AV
DESCRIPTION:
SAE (JIC) 37° Swivel fittings are designed to match the respective Parker hoses, assuring an ideal combination serving our customers needs reliably and efficient.
Technical Specifications:
| Connection 2 Size: | 7/16"-20 |
| Hose I.D. (inch): | 0.25" |
| Shape: | Straight |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| Connection 1 Size: | 1/4 inch Hose I.D., 6.35 mm Hose I.D. |
| Connection 2 Type: | Female, JIC 37°, Swivel |
| Connection 2 Size: | 7/16"-20 inch Thread |
| Tube Outside Diameter: | n/a |
| Hex Size: | 9/16 inch (see drawing legend H) |
| Hex Size 1: | 9/16 inch (see drawing legend J) |
| Hex Size 2: | n/a |
| Fitting Length: | 2.05 inch (see drawing legend A), 52 mm (see drawing legend A) |
| Connection Length: | 1-1/16 inch Cut-off allowance, 27 mm Cut-off allowance |
| Maximum Operating Pressure: | 5000 psi (Dependent on hose), 34.5 MPa (Dependent on hose) |
| Technology: | Fluid & Gas Handling |
| Brand: | Parker |
| For Fluid Type: | Hydraulic Fluids, Oil, Air (Pneumatic Media), Water |
| Body Material: | Stainless Steel |
| Industry: | Off-road Machinery, Industrial Manufacturing Equipment, Transportation |
| Application: | Public Works, Construction Equipment, Agriculture Equipment, Material Handling, Machine Tools, Industrial Hydraulics, Utility Equipment |
| Division: | Parflex Division |
| Length (inch): | 2.05" |
| Product Style: | Female JIC 37° - Swivel - Straight |
