10670-12-12-SM
DESCRIPTION :
High Pressure No-Skive fitting 70 series for High Pressure No-Skive three wire braided Compact and Multispiral hydraulic hoses.
Technical Specifications
| Connection 2 Type: | Female JIC 37° - Swivel |
| Body Material: | Steel |
| Maximum Operating Pressure: | 350 bar, 35.0 MPa |
| Connection 1 Size: | -12 (Size), 19.1 mm Hose I.D., 3/4 inch Hose I.D. |
| For Fluid Type: | Air, Water, Hydraulic Fluids on Mineral-oil Basis, Lubricants (Oils), Coolants (Glycol, Water-Glycol), Air (General Industrial Air), Lubricants, Mineral Hydraulic Oil |
| Industry: | Off-road Machinery, Transportation |
| Connection 1 Type: | Hose |
| Brand: | Parker |

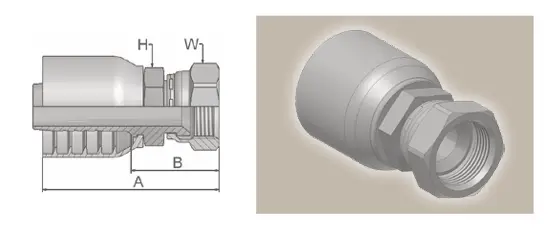

| Hex Size 2: | 27 mm (see drawing legend H) |
| Hex Size 1: | 32 mm (see drawing legend W) |
| Application: | High Pressure Hydraulics |
| Product Type: | Crimp Fittings No-Skive |
| Technology: | Fluid & Gas Handling |
| Fitting Length: | 80 mm (see drawing legend A) |
| Configuration: | Hose to Port |
| Division: | Polymer Hose Division Europe |
| Connection 2 Type: | Female, JIC 37°, Swivel |
| Shape: | Straight |
| Shape: | Straight |
| Port Size: | 3/4" |
| Port Type: | DKJ |
| Port Type: | JIC |
| Specifications Met: | ISO 12151-5-SWS |
| Hose Inside Diameter: | -12 |
| Connection 2 Size: | 1-1/16"-12 inch Thread |
| Connection Length: | 41 mm (see drawing legend B) |
Exceed MSHA Accepted ISO12151-5-SWS – DKJ.
