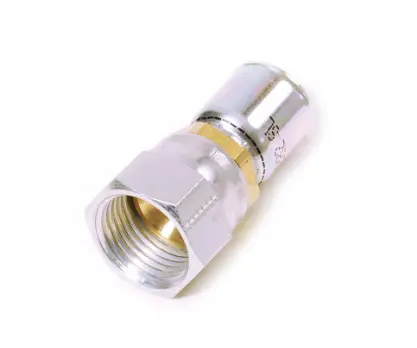

10691N-16-16-AV
DESCRIPTION:
Permanent Fittings for PTFE Hose - 91/91N
TECHNICAL DESCRIPTION:
| Connection 2 Size: | 1-5/16"-12 |
| Product Style: | Female JIC 37° - Swivel - Straight |
| Product Series: | 91N |
| Shape: | Straight |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| Connection 1 Size: | 7/8 inch Hose I.D., -16 (Size), 22 mm |
| Connection 2 Type: | Female, JIC 37°, Swivel |
| Connection 2 Size: | 1-5/16"-12 inch Thread |
| Tube Outside Diameter: | n/a, n/a |
| Product Type: | Hose Fittings |
| Fitting Length: | 2.45 inch (see drawing legend A), 62 mm |
| Connection Length: | 1-9/16 inch Cut-off allowance (see drawing legend B), 40 mm |
| Maximum Operating Pressure: | 3000 psi (Dependent on hose), 20.7 MPa, 207 bar |
| Technology: | Fluid & Gas Handling |
| Brand: | Parker |
| For Fluid Type: | Hydraulic Fluids, Air (Pneumatic Media), Steam, Oil, Pharmaceutical Fluids, Chemicals, Gases, Water |
| Body Material: | Brass (Nipple), Steel (Nut and Shell) |
| Industry: | Transportation, Food & Beverage, General Industrial, Semiconductor, Healthcare & Life Sciences |
| Hose I.D. (inch): | 7/8" |
| Division: | Parflex Division |
| Application: | Chemical Transfer, Fluid Control, Instrumentation, Medical, Ultra High Purity, Hydraulics, General Industrial, Tools & Equipment, Pneumatics, Semiconductor |
| Length (inch): | 2.45" |
