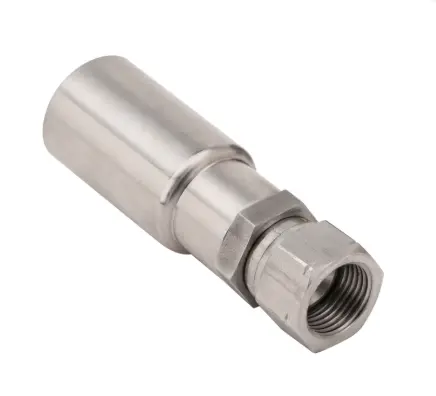

106E3-4-4C
DESCRIPTION:
Parker’s E3/E4 Series is high pressure application, simplified hose routing and eliminates the need for adaptors. These fittings are specifically designed for the enginer subsea use.
Technical Specifications
| Length: | 2.46" |
| Product Style: | JIC Straight |
| Hose I.D. (inch): | 1/4" |
| Hose Inside Diameter: | -4 (Size), 1/4 inch, 6 mm |
| Maximum Operating Pressure: | 5000 psi, 34.5 MPa, 345 bar |
| Fitting Thread Size: | 7/16"-20 |
| Thread Size: | 7/16"-20 inch |
| Length: | 2.46 inch, 62 mm |
| Shape: | Straight |
| Application: | Subsea |
| Connection Type: | Crimp |
| Flange Size: | n/a |
| Flange Size: | n/a |
