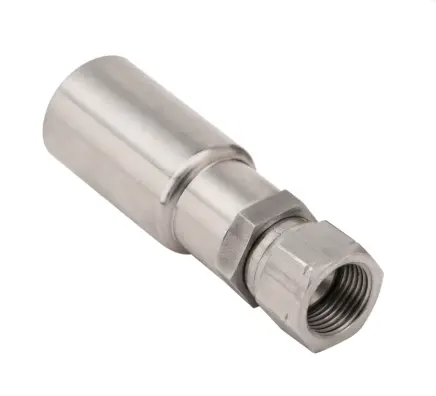

106E4-16-16C
DESCRIPTION:
The Parker's E3/E4 Series, designed for subsea applications. These fittings are hermetically sealed with a patent-pending O-ring boss design, providing unmatched protection against moisture ingress. They eliminate the need for adaptors, simplifying hose routing and reducing potential leak points. The fittings are compatible with 2390N High Pressure Subsea hose.
Technical Specifications
| Product Style: | JIC Straight |
| Hose I.D. (inch): | 1" |
| Flange Size: | n/a |
| Fitting Thread Size: | 1-5/16"-12 |
| Length: | 4.76" |
| Hose Inside Diameter: | -16 (Size), 1 inch, 25 mm |
| Maximum Operating Pressure: | 5000 psi, 34.5 MPa, 345 bar |
| Thread Size: | 1-5/16"-12 inch |
| Length: | 4.76 inch, 121 mm |
| Shape: | Straight |
| Application: | Subsea |
| Connection Type: | Crimp |
| Flange Size: | n/a |
Exceed the performance requirements of API-17E and ISO 13628-5 standards.
