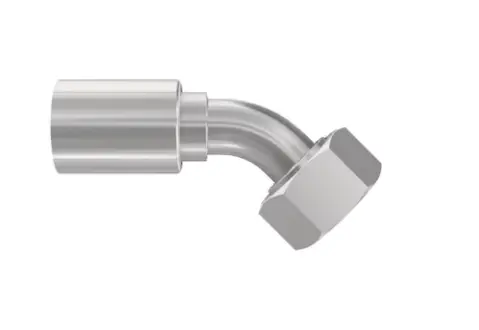

10C70-25-16-AV
DESCRIPTION:
High Pressure No-Skive fitting 70 series for High Pressure No-Skive three wire braided Compact and Multispiral hydraulic hoses.
TECHNICAL DESCRIPTON:
| Connection 2 Type: | Female Metric S - Swivel (24° Cone with O-Ring) |
| Body Material: | Steel |
| Maximum Operating Pressure: | 420 bar, 42.0 MPa |
| Connection 1 Size: | -16 (Size), 25.4 mm Hose I.D., 1 inch Hose I.D. |
| Industry: | Off-road Machinery, Transportation |
| Connection 1 Type: | Hose |
| Brand: | Parker |
| Application: | High Pressure Hydraulics |
| Product Type: | Crimp Fittings No-Skive |
| Technology: | Fluid & Gas Handling |
| Tube Outside Diameter: | 25 mm |
| Fitting Length: | 123 mm (see drawing legend A) |
| Drop Length: | 33 mm (see drawing legend E) |
| Configuration: | Hose to Port |
| Division: | Polymer Hose Division Europe |
| Connection 2 Type: | Female, Metric S, Swivel, 24° Cone (with O-Ring) |
| Shape: | Elbow 45° |
| Port Type: | DKOS |
| Port Size: | 25 mm |
| Hose Inside Diameter: | -16 |
| Connection 2 Size: | M36x2.0 mm Thread |
| Connection Length: | 76 mm (see drawing legend B) |
