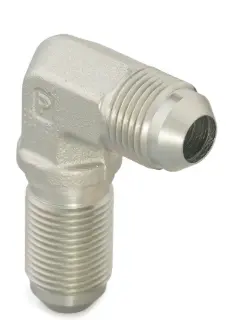

10WEMTXWLNMS
DESCRIPTION:
Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
TECHNICAL DESCRIPTION:
| Connection Type: | 37° Flare, Tube to Tube Bulkhead |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 6000 psi |
| Shape: | 90° Elbow |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 3/8 inch, 10 mm |
| Connection 2 Size: | Male 37° Flare Bulkhead |
| Connection 2 Tube Outside Diameter: | 3/8 inch, 10 mm |
| Connection 2 Thread Size: | na |
| Connection 3 Size: | na |
| Connection 3 Tube Outside Diameter: | na |
| Connection 3 Thread Size: | na |
| Connection 4 Size: | na |
| Connection 4 Tube Outside Diameter: | na |
| O-Ring Material: | na |
| Body Material: | Steel |
