11543-16-16
DESCRIPTION:
Parker’s 43 Series crimp style hydraulic fittings are renowned for its ease of assembly and are a complete range of permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
Technical Specifications
| Connection 2 Size: | 1" |
| Body Material: | Steel |
| Hose I.D. (size): | -16 |
| Connection 2 Type: | SAE Code 61 Flange Head |
| For Fluid Type: | Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester), Lubricants (Oils) |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation, Oil & Gas |
| Connection 1 Type: | Hose |
| Configuration: | Hose to Port |
| Application: | General Industrial, On-road Vehicles, Machine Tools, In-Plant Automotive |
| Connection 1 Size: | -16 (Size), 25.4 mm Hose I.D., 1 inch Hose I.D. |
| Product Type: | Crimp Fittings No-Skive |
| Technology: | Fluid & Gas Handling |
| Body Material: | Steel |
| Division: | Polymer Hose Division Europe |

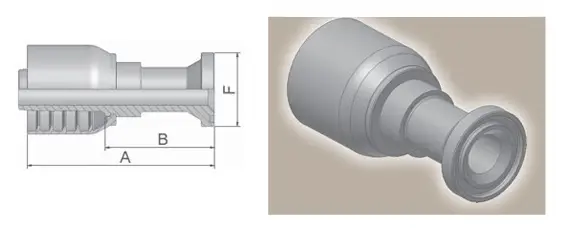

| Fitting Length: | 108 mm (see drawing legend A), 108 mm |
| Flange Size: | 45 mm (see drawing legend F) |
| Connection Length: | 63 mm (see drawing legend B), 63 mm |
| Coating: | Chromium 6 Free-plated |
| Connection 2 Type: | Flange, SAE, Code 61 Flange |
| Shape: | Straight |
| Shape: | Straight |
| Port Type: | SFL |
| Specifications Met: | ISO 12151-3-S-L |
| Connection 2 Size: | 1 inch |
Exceed MSHA Accepted ISO 12151-3-S-L – SFL
(21.0 MPa/ 3000 psi)
