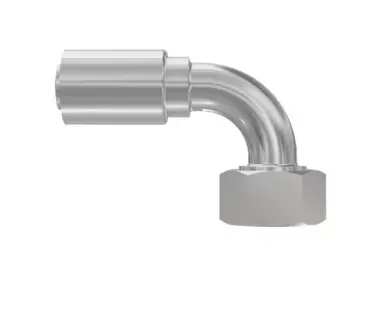

11C43-25-12

Description:

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Technical Specifications

• Materials of Construction: Steel
• Shape: Elbow 90°
• Port Connection: M36x2.0
• Product Style: Female Metric S - Swivel (24° Cone with O-Ring)
• Hose I.D. (size): -12
• Hex Type: Metric
• Disclaimer: The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. Refer to Fluid Connectors safety guide.
• Hose Inside Diameter: -12 (Size), 3/4 inch
