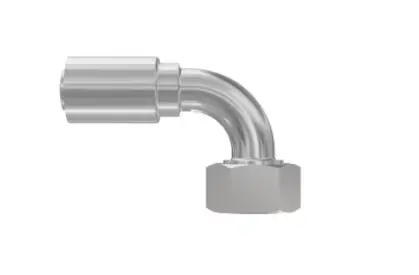

11C43-25-12-AV
DESCRIPTION:
Parker’s 43 Series crimp style hydraulic fittings are renowned for its ease of assembly and are a complete range of permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHNICAL DESCRIPTION:
| Connection 2 Size: | M36x2.0 |
| Connection 2 Type: | Female Metric S - Swivel (24° Cone with O-Ring) |
| Hose I.D. (size): | -12 |
| Body Material: | Steel |
| For Fluid Type: | Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester), Lubricants (Oils) |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation, Oil & Gas |
| Connection 1 Type: | Hose |
| Configuration: | Hose to Port |
| Application: | General Industrial, On-road Vehicles, Machine Tools, In-Plant Automotive |
| Connection 1 Size: | -12 (Size), 19.1 mm Hose I.D., 3/4 inch Hose I.D. |
| Product Type: | Crimp Fittings No-Skive |
| Connection Length: | 49 mm (see drawing legend B) |
| Technology: | Fluid & Gas Handling |
| Body Material: | Steel |
| Division: | Polymer Hose Division Europe |
| Hex Size: | 46 mm (see drawing legend H) |
| Tube Outside Diameter: | 25 mm |
| Fitting Length: | 89 mm (see drawing legend A) |
| Coating: | Chromium 6 Free-plated |
| Drop Length: | 59 mm (see drawing legend E) |
| Connection 2 Type: | Female, Metric S, Swivel, 24° Cone (with O-Ring) |
| Shape: | Elbow 90° |
| Shape: | Elbow 90° |
| Port Type: | DKOS |
| Specifications Met: | ISO 12151-2-SWE-S |
| Connection 2 Size: | M36x2.0 mm Thread |
