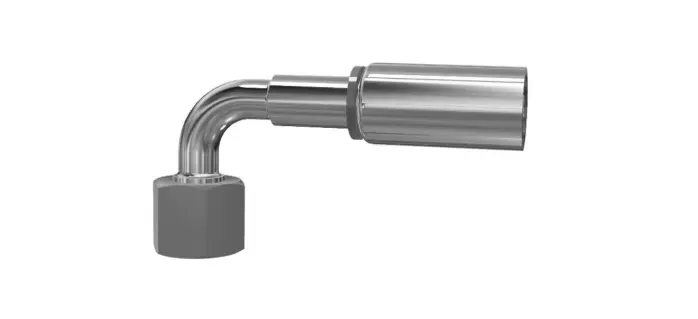

11C48-16-8
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Connection 2 Type: | Female Metric S - Swivel (24° Cone with O-Ring) |
| Body Material: | Steel |
| Product Style: | - |
| Maximum Operating Pressure: | 420 bar, 42.0 MPa |
| Connection 1 Size: | 12.7 mm Hose I.D., 1/2 inch Hose I.D., -8 (Size) |
| Hex Size: | 30 mm (see drawing legend W) |
| Tube Outside Diameter: | 16 mm |
| Fitting Length: | 61 mm (see drawing legend A) |
| Drop Length: | 45 mm (see drawing legend E) |
| Brand: | Parker |
| Shape: | Elbow 90° |
| Connection Length: | 37 mm (see drawing legend B) |
| Shape: | Elbow 90° |
| Division: | Polymer Hose Division Europe |
| Port Size: | 16 mm |
| Industry: | Off-road Machinery, Industrial Manufacturing Equipment, Transportation |
| Port Type: | DKOS |
| Application: | Hydraulics |
| Connection 2 Type: | Female, Metric S, Swivel, 24° Cone (with O-Ring) |
| Hose Inside Diameter: | -8 |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | M24x1.5 mm Thread |
| Product Type: | Hose Fittings |
| Port Type: | DKOS |
| Body Material: | Steel |
| Specifications Met: | ISO 12151-2-SWE-S |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| For Fluid Type: | Hydraulic Fluids, Mineral Hydraulic Oil, Coolants (Water-Glycol), Air, Water |
| Coating: | Chromium 6 Free-plated |
Exceed the performance requirements of MSHA Accepted.
ISO 12151-2-SWE-S – DKOS 90°
