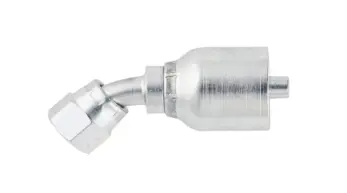

13743-16-16
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHNICAL DESCRIPTION:
| Hose Inside Diameter: | -16 (Size), 1 inch |
| Materials of Construction: | Steel |
| Hose I.D. (size): | -16 |
| Port Connection: | 1" |
| Product Style: | Female JIC 37° - Swivel |
| Port Size: | 1 inch |
| Hex Type: | Inch |
| Connection Size: | 1-5/16"-12 inch Thread |
| Flange Size: | n/a |
| Product Style: | Female JIC 37° - Swivel |
| Shape: | Elbow 45° Short Drop |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Nut Hex Size: | 1-1/2 inch, 38 mm |
| Back-Up Hex Size: | n/a |
| Shape: | Elbow 45° - Short Drop |
