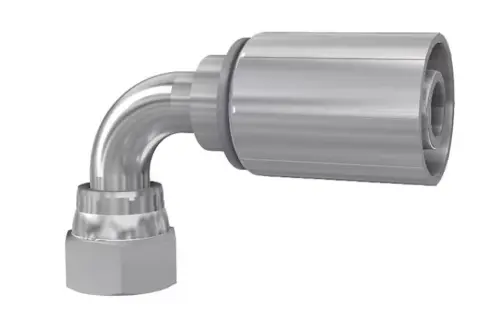

13948-6-6
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Connection 2 Type: | Female JIC 37° - Swivel |
| Body Material: | Steel |
| Product Style: | - |
| Maximum Operating Pressure: | 350 bar, 35.0 MPa |
| Connection 1 Size: | 9.5 mm Hose I.D., 3/8 inch Hose I.D., -6 (Size) |

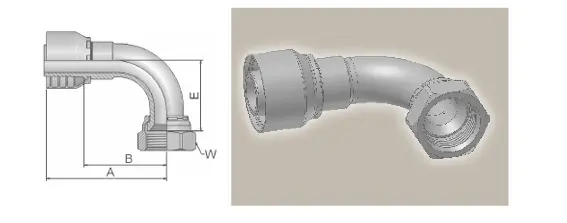

| Hex Size: | 19 mm (see drawing legend W) |
| Fitting Length: | 51 mm (see drawing legend A) |
| Drop Length: | 23 mm (see drawing legend E) |
| Brand: | Parker |
| Shape: | Elbow 90° Short Drop |
| Connection Length: | 28 mm (see drawing legend B) |
| Division: | Polymer Hose Division Europe |
| Shape: | Elbow 90° - Short Drop |
| Port Size: | 9/16" |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Port Type: | DKJ 90° |
| Application: | Hydraulics |
| Connection 2 Type: | Female, JIC 37°/45° Flare SAE, Dual Flare Swivel |
| Hose Inside Diameter: | -6 |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | 9/16"-18 inch Thread |
| Product Type: | Hose Fittings |
| Port Type: | DKJ |
| Body Material: | Steel |
| Specifications Met: | ISO 12151-5-SWES |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| For Fluid Type: | Hydraulic Fluids, Mineral Hydraulic Oil, Coolants (Water-Glycol), Air, Water |
| Coating: | Zinc-nickel |
Exceed the performance requirements of MSHA Accepted.
ISO 12151-5-SWES – DKJ 90°
