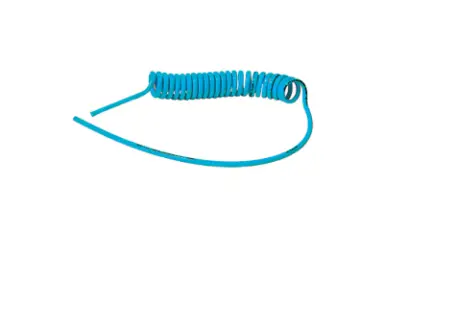

1462U08 04
DESCRIPTION:
This polyurethane recoil tubing is perfect for installations requiring flexibility in confined spaces. Good resistance to shock and abrasion, together with a design integrating straight ends, allow for easy and safe operation of pneumatic equipment.
TECHNICAL DESCRIPTION:
| Outside Diameter: | 8 mm |
| Division: | Low Pressure Connectors Europe Division |
| Weight: | 0.337 kg |
| Specifications Met: | NF E49-101 (Industrial), RoHS (Industrial), PED (Industrial), REACH (Industrial) |
| Maximum Operating Pressure: | 10 bar |
| Tubing Material: | PU |
| Connection 1 Thread Size (metric): | na |
| Minimum Operating Temperature: | -20 °C |
| Maximum Operating Temperature: | 70 °C |
| Number of Tubes: | 1 |
| Application: | Workshops, Tooling, Pneumatics, Motion Technologies, Robotics, Industrial Machinery |
| Media: | Air (Compressed Air) |
| Color: | BLUE |
| Length (m): | 6 |
| Inside Diameter: | 5 mm |
