16-8-HBZ-SS-C
Description:

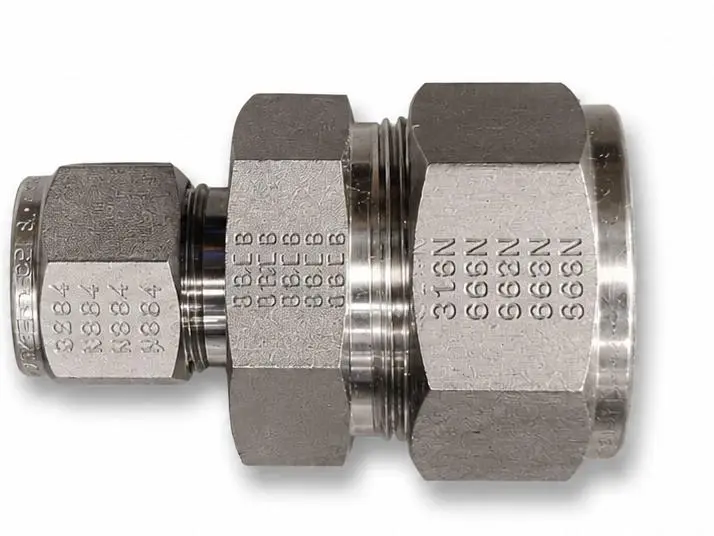

16-8-HBZ-SS-C – Stainless Steel Reducing Union (1 in OD × 1/2 in OD Tube Stub) is a precision tube fitting designed to connect a 1-inch outside diameter tube to a 1/2-inch tube stub, providing a secure, leak-tight reduction in tubing size. Manufactured from 316 stainless steel, it offers excellent corrosion resistance and is suitable for high-pressure instrumentation, hydraulic, pneumatic, and process control systems. The "C" suffix typically indicates a silver-plated nut for reduced assembly torque and improved galling resistance.
Technical Description:
| Component Type | Reducing Union / Tube Stub Reducer |
| Manufacturer | Parker Hannifin (CPI Instrumentation Tube Fittings) |
| Function | Connects a 1 in OD tube to a 1/2 in OD tube stub while maintaining a leak-tight connection. |
| Connection Size 1 | 1 in Outside Diameter (OD) Tube |
| Connection Size 2 | 1/2 in OD Tube Stub |
| Connection Type | Compression Tube Fitting × Tube Stub |
| Material | 316 Stainless Steel |
| Nut Material | 316 Stainless Steel with silver plating ("C" option) |
| Ferrule Type | Single-ferrule CPI compression fitting |
| Design | Straight reducing union with tube stub end |
| Seal Type | Metal-to-metal compression seal using ferrule action |
| Pressure Rating | Suitable for high-pressure instrumentation service (actual rating depends on tubing size, wall thickness, and operating temperature). |
| Operating Temperature | Dependent on tubing and seal material; compatible with typical instrumentation service temperatures |
| Corrosion Resistance | Excellent resistance to corrosion, oxidation, and many industrial chemicals |
| Installation Method | Compression fitting assembled by tightening the nut to swage the ferrule onto the tube |
| Typical Media | Hydraulic oil, compressed air, inert gases, steam, water, and compatible process fluids |
| Applications | Instrumentation systems, hydraulic systems, pneumatic systems, chemical processing, oil & gas, power generation, and process industries |
| Features | Leak-tight performance, vibration resistance, reusable fitting, corrosion-resistant 316 SS construction, reduced assembly torque due to silver-plated nut. |
