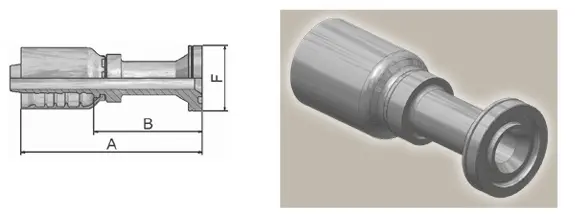

16N77-32-32

DESCRIPTION:

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Technical Specifications

Materials of Construction:	Steel
Hose I.D. (inch):	2"
Shape:	Elbow 90°
Connection Size:	n/a
Flange Size:	2 inch
Hose Inside Diameter:	2 inch, -32 (Size)
Materials of Construction:	Steel
Port Size:	2 inch
Shape:	Elbow 90°
Product Style:	SAE Code 62 Flange Head
Back-Up Hex Size:	n/a
Banjo Port Diameter:	n/a
Nut Hex Size:	n/a
Port Connection:	2"
Product Style:	SAE Code 62 Flange Head

₹ 24,299.00 24299.0 INR ₹ 24,299.00

₹ 24,299.00

material
- Steel
Shape:
- Elbow 90°
Hose Inside Diameter:
- -32 inch
Product Type:
- Crimp Fittings No-Skive
Maximum Operating Pressure:
- 42.0 MPa, 420 bar
Connection 1 Size:
- 50.8 mm, 2 inch, -32 (Size)
Connection 2 Size:
- 2 inch

This combination does not exist.
