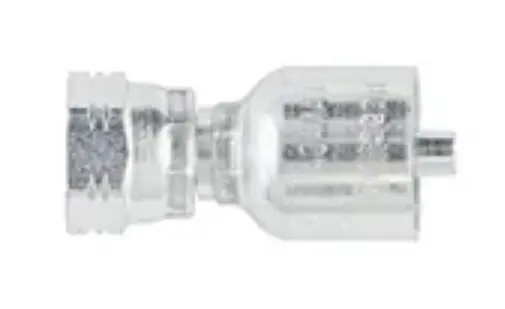

19243-4-4-AV
DESCRIPTION:
Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHNICAL DESCRIPTION:
| Hose Inside Diameter: | -4 (Size), 1/4 inch |
| Materials of Construction: | Steel |
| Hose I.D. (size): | -4 |
| Shape: | Straight |
| Port Connection: | 1/4" |
| Product Style: | Female BSP Parallel Pipe - Swivel (60° Cone) |
| Port Size: | 1/4 inch |
| Hex Type: | Metric |
| Connection Size: | n/a |
| Connection Thread Size: | n/a |
| Flange Size: | n/a |
| Product Style: | Female BSP Parallel Pipe - Swivel - (60° Cone) |
| Shape: | Straight |
| Materials of Construction: | Steel |
| Banjo Port Diameter: | n/a |
| Hose I.D. (size): | -4 |
| Nut Hex Size: | n/a, 19 mm |
| Back-Up Hex Size: | n/a |
