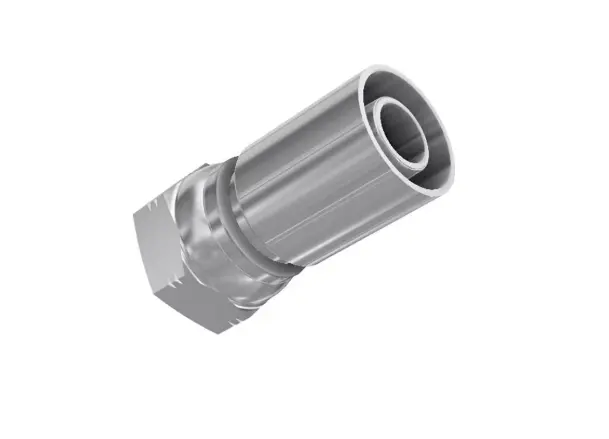

19248-8-8
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Body Material: | Steel |
| Connection 2 Type: | Female BSP Parallel Pipe - Swivel (60° Cone) |
| Maximum Operating Pressure: | 43.0 MPa, 430 bar |
| Connection 1 Size: | 12.7 mm Hose I.D., 1/2 inch Hose I.D., -8 (Size) |

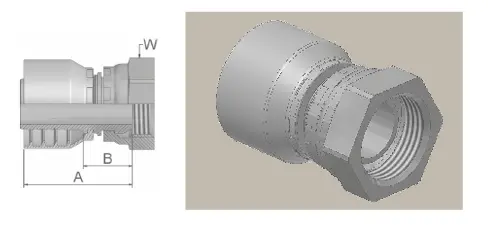

| Hex Size: | 27 mm (see drawing legend W) |
| Fitting Length: | 45 mm (see drawing legend A) |
| Technology: | Fluid & Gas Handling |
| Division: | Polymer Hose Division Europe |
| Product Type: | Hose Fittings |
| Shape: | Straight |
| Connection Length: | 22 mm (see drawing legend B) |
| Brand: | Parker |
| Shape: | Straight |
| Port Size: | 1/2" |
| Port Type: | DKR |
| Application: | Hydraulics |
| Connection 2 Type: | Female, BSP Parallel Pipe, Swivel, 60° Cone |
| Connection 2 Size: | 1/2"-14 inch Thread |
| Hose Inside Diameter: | -8 |
| Port Type: | DKR |
| Body Material: | Steel |
| Specifications Met: | BS 5200-A |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| Coating: | Chromium 6 Free-plated |
