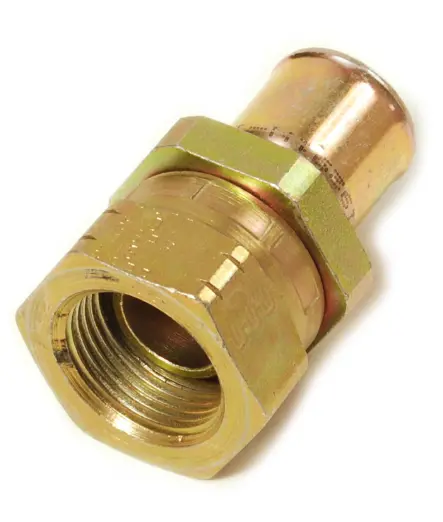

19291N-8-8C-AV

DESCRIPTION:

Parker's 91/91N Series fittings are used with smooth bore, medium pressure PTFE hoses from the division.

Product Style: Female BSP Parallel Pipe - Swivel Straight (60° Cone)
Hose I.D. (inch): 13/32"
Length (inch): 1.99"
Product Series: 91N
Shape: Straight
Configuration: Hose to Port
Connection 1 Type: Hose
Connection 1 Size: 13/32 inch Hose I.D., -8 (Size), 10.3 mm
Connection 2 Type: Female, BSP Parallel Pipe, Swivel, 60° Cone
Connection 2 Size: PF-1/2"-14 inch Thread
Tube Outside Diameter: n/a, n/a
Product Type: Hose Fittings
Fitting Length: 1.99 inch (see drawing legend A), 51 mm
Connection Length: 1-5/16 inch Cut-off allowance (see drawing legend B), 33 mm
Maximum Operating Pressure: 3000 psi (Dependent on hose), 20.7 MPa, 207 bar
Technology: Fluid & Gas Handling
Specifications Met: n/a
For Fluid Type: Hydraulic Fluids, Oil, Pharmaceutical Fluids, Chemicals, Gases, Air (Pneumatic Media), Steam, Water
Body Material: Steel

Connection 1 Size:
- 13/32 inch Hose I.D., -8 (Size), 10.3 mm
Connection 2 Size:
Material
- BRASS
Maximum Operating Pressure:
- 3000 psi (Dependent on hose), 20.7 MPa, 207 bar
