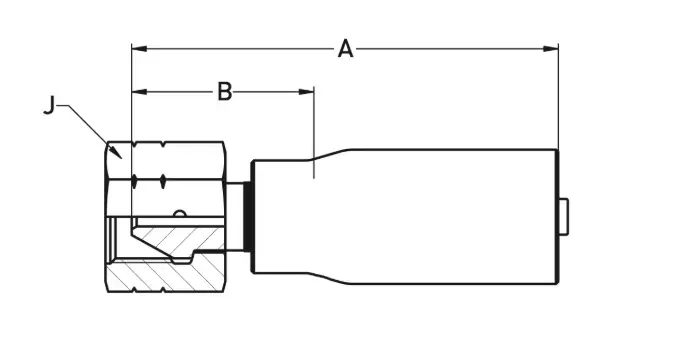

1AY2X-8-05
Type “M” female swivel
Technical Specifications
| Connection Thread Size: | 3/4"-16 |
| Hose I.D. (mm): | 7.9 mm |
| Nominal Inside Diameter: | DN 8 |
| Fitting Type: | AY |
| Hose Inside Diameter: | -5 (Size), 5/16 inch |
| Hose I.D. (size): | -5 |
| Connection Type: | UNF |
| Length: | 91 mm, 3.6 inch |
| Maximum Operating Pressure: | 320 MPa |
| Shape: | Straight |
| Product Style: | Female Type “M” Swivel |
| Maximum Working Pressure (psi): | 46400 psi |
