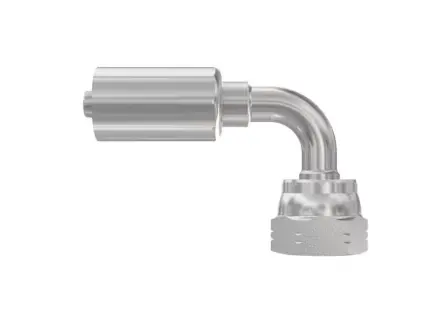

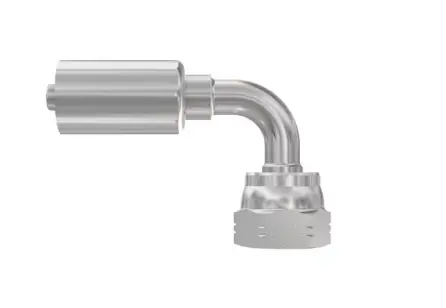

1B243-32-32C-AV
DESCRIPTION:
Parker’s 43 Series crimp style hydraulic fittings are renowned for its ease of assembly and are a complete range of permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
Technical Specifications
| Connection 2 Type: | Female BSP Parallel Pipe - Swivel (60° Cone) |
| Shape: | Elbow 90° |
| Body Material: | Stainless Steel |
| Connection 2 Size: | -32 |
| Hose I.D. (size): | -32 |
| For Fluid Type: | Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester), Lubricants (Oils) |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation, Oil & Gas |
| Connection 1 Type: | Hose |
| Configuration: | Hose to Port |
| Application: | General Industrial, On-road Vehicles, Machine Tools, In-Plant Automotive |
| Connection 1 Size: | -32 (Size), 2 inch Hose I.D., 50.8 mm Hose I.D. |
| Product Type: | Crimp Fittings No-Skive |
| Connection Length: | 137 mm (see drawing legend B) |
| Technology: | Fluid & Gas Handling |
| Body Material: | Stainless Steel |
| Division: | Polymer Hose Division Europe |
| Hex Size: | 70 mm (see drawing legend W) |
| Fitting Length: | 185 mm (see drawing legend A) |
| Drop Length: | 134 mm (see drawing legend E) |
| Connection 2 Type: | Female, BSP Parallel Pipe, Swivel, 60° Cone |
| Shape: | Elbow 90° |
| Port Type: | DKR |
| Specifications Met: | BS 5200-B |
| Connection 2 Size: | 2"-11 inch Thread |
