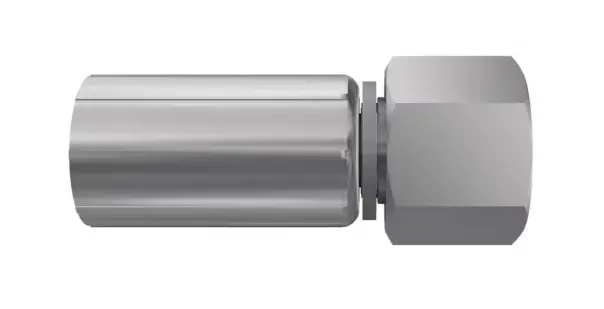

1C946-12-5
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 46 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Connection 1 Size: | -5 Size |
| Connection 2 Size: | 12 mm |
| Connection 2 Type: | Female Metric S - Swivel (24° Cone with O-Ring) |
| Brand: | Parker |
| Application: | Hydraulics |
| Connection 1 Size: | 7.9 mm Hose I.D., 5/16 inch Hose I.D., -5 (Size) |
| Division: | Polymer Hose Division Europe |
| Technology: | Fluid & Gas Handling |
| Body Material: | Steel |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Connection 1 Type: | Hose |
| Maximum Operating Pressure: | 63.0 MPa, 630 bar |
| Hex Size: | 24 mm (see drawing legend W) |
| Tube Outside Diameter: | 12 mm |
| Coating: | Zinc-Nickel |
| Connection 2 Type: | Female, Metric S, Swivel, 24° Cone (with O-Ring) |
| Shape: | Straight |
| Shape: | Straight |
| Port Type: | DKOS |
| Specifications Met: | ISO 12151-2-SWS-S |
| Port Type: | DKOS |
| Connection 2 Size: | M20x1.5 mm Thread |
| Connection Length: | 24 mm (see drawing legend B) |
| Fitting Length: | 48 mm (see drawing legend A) |
