1C99X-12-06C
DESCRIPTION:
Parker 9X Fittings are always designed to match the respective Parker hoses, assuring an ideal combination and hose assemblies serving our customers needs reliably and efficient. Suitable for hose type 2370N.
Technical Specifications
| Connection 2 Type: | Female Metric S - Swivel (24° Cone with O-Ring) |
| Connection 2 Size: | M20x1.5 |
| Tube Outside Diameter: | 12 mm |
| Connection 1 Type: | Hose |
| Maximum Operating Pressure: | 63.0 MPa, 630 bar |
| Connection 1 Size: | -6 (Size), 9.5 mm Hose I.D., 3/8 inch Hose I.D. |
| Body Material: | Steel |
| Industry: | Industrial Manufacturing Equipment |
| Brand: | Parker |
| Application: | Mobile Hydraulics, Material Handling, High Pressure Paint Spray |
| Product Type: | Ultra-High Pressure Fittings |

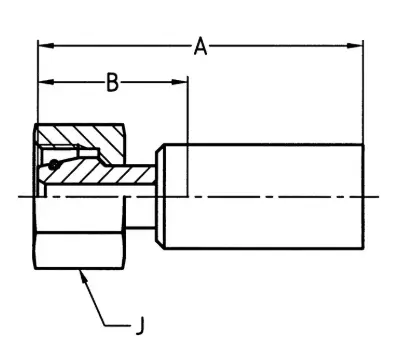

| Fitting Length: | 63 mm (see drawing legend A) |
| For Fluid Type: | Air (General Industrial Air), Mineral Hydraulic Oil, Water |
| Coating: | Chromium 6 Free-plated |
| Configuration: | Hose to Port |
| Technology: | Fluid & Gas Handling |
| Division: | Polymer Hose Division Europe |
| Hex Size: | 24 mm (see drawing legend J) |
| Nominal Inside Diameter: | DN 10 |
| Maximum Working Pressure (MPa): | 63.0 MPa |
| Hose I.D. (mm): | 9.5 mm |
| Shape: | Straight |
| Connection 2 Type: | Female, Metric S, Swivel, 24° Cone (with O-Ring) |
| Shape: | Straight |
| Port Type: | DKOS |
| Specifications Met: | ISO 12151-2-SWS-S |
| Connection 2 Size: | M20x1.5 mm Thread |
| Connection Length: | 29 mm (see drawing legend B) |
