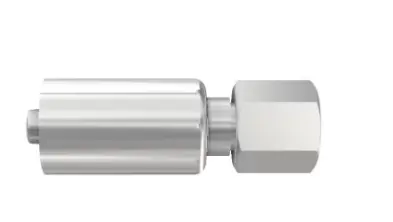

1CA43-10-6-AV
DESCRIPTION:
Parker’s 43 Series crimp style hydraulic fittings are renowned for its ease of assembly and are a complete range of permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.
TECHNICAL DSECRIPTION:
| Hose I.D. (size): | -6 |
| Connection 2 Size: | M16x1.5 |
| Connection 2 Type: | Female Metric L - Swivel (24° Cone with O-Ring) |
| Body Material: | Steel |
| For Fluid Type: | Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester), Lubricants (Oils) |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation, Oil & Gas |
| Connection 1 Type: | Hose |
| Configuration: | Hose to Port |
| Application: | General Industrial, On-road Vehicles, Machine Tools, In-Plant Automotive |
| Connection 1 Size: | -6 (Size), 9.5 mm Hose I.D., 3/8 inch Hose I.D. |
| Product Type: | Crimp Fittings No-Skive |
| Technology: | Fluid & Gas Handling |
| Body Material: | Steel |
| Division: | Polymer Hose Division Europe |
| Tube Outside Diameter: | 10 mm |
| Hex Size: | 19 mm (see drawing legend W) |
| Coating: | Chromium 6 Free-plated |
| Connection 2 Type: | Female, Metric L, Swivel, Female, 24° Cone (with O-Ring) |
| Shape: | Straight |
| Shape: | Straight |
| Port Type: | DKOL |
| Specifications Met: | ISO 12151-2-SWS-L |
| Connection 2 Size: | M16x1.5 mm Thread |
| Connection Length: | 25 mm (see drawing legend B) |
| Fitting Length: | 54 mm (see drawing legend A) |
