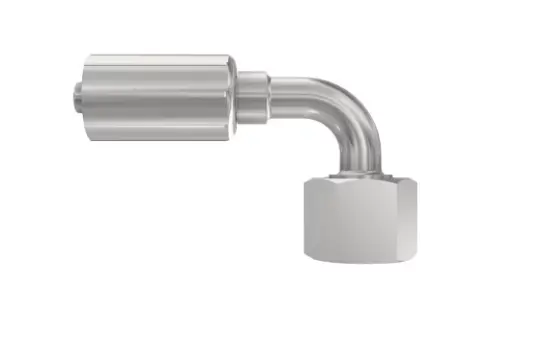

1CF43-42-16-AV
Technical Specifications
| Hose I.D. (size): | -24 |
| Connection 2 Size: | M52x2.0 |
| Connection 2 Type: | Female Metric L - Swivel (24° Cone with O-Ring) |
| Body Material: | Stainless Steel |
| For Fluid Type: | Petroleum Hydraulic Fluids (Petroleum Base), Petroleum Hydraulic Fluids (Phosphate-ester), Lubricants (Oils) |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation, Oil & Gas |
| Connection 1 Type: | Hose |
| Configuration: | Hose to Port |
| Application: | General Industrial, On-road Vehicles, Machine Tools, In-Plant Automotive |
| Connection 1 Size: | -24 (Size), 38.1 mm Hose I.D., 1-1/2 inch Hose I.D. |
| Product Type: | Crimp Fittings No-Skive |
| Connection Length: | 101 mm (see drawing legend B) |
| Technology: | Fluid & Gas Handling |
| Body Material: | Stainless Steel |
| Division: | Polymer Hose Division Europe |
| Hex Size: | 60 mm (see drawing legend W) |
| Connection 2 Type: | Female, Metric L, Swivel, 24° Cone (with O-Ring) |
| Shape: | Elbow 90° |
| Shape: | Elbow 90° |
| Tube Outside Diameter: | 42 mm |
| Fitting Length: | 139 mm (see drawing legend A) |
| Drop Length: | 101 mm (see drawing legend E) |
| Port Type: | DKOL |
| Specifications Met: | ISO 12151-2-SWE-L |
| Connection 2 Size: | M52x2.0 mm Thread |
