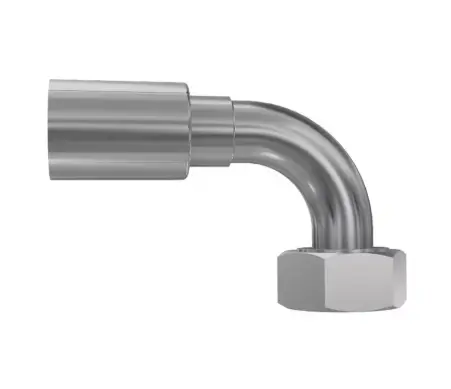

1CF48-12-6
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Body Material: | Steel |
| Product Style: | - |
| Connection 2 Type: | Female Metric L - Swivel (24° Cone with O-Ring) |
| Maximum Operating Pressure: | 350 bar, 35.0 MPa |
| Hex Size: | 22 mm (see drawing legend W) |
| Tube Outside Diameter: | 12 mm |
| Connection 1 Size: | 9.5 mm Hose I.D., 3/8 inch Hose I.D., -6 (Size) |
| Fitting Length: | 58 mm (see drawing legend A) |
| Drop Length: | 35 mm (see drawing legend E) |
| Brand: | Parker |
| Shape: | Elbow 90° |
| Connection Length: | 36 mm (see drawing legend B) |
| Division: | Polymer Hose Division Europe |
| Shape: | Elbow 90° |
| Port Size: | 12 mm |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Port Type: | DKOL |
| Application: | Hydraulics |
| Connection 2 Type: | Female, Metric L, Swivel, 24° Cone (with O-Ring) |
| Hose Inside Diameter: | -6 |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | M18x1.5 mm Thread |
| Product Type: | Hose Fittings |
| Port Type: | DKOL |
| Body Material: | Steel |
| Specifications Met: | ISO 12151-2-SWE-L |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| For Fluid Type: | Hydraulic Fluids, Mineral Hydraulic Oil, Coolants (Water-Glycol), Air, Water |
| Coating: | Zinc-nickel |
