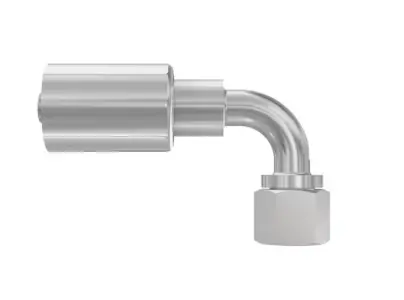

1CF70-18-10
DESCRIPTION:
High Pressure No-Skive fitting 70 series for High Pressure No-Skive three wire braided Compact and Multispiral hydraulic hoses.
Technical Specifications
| Connection 2 Type: | Female Metric L - Swivel (24° Cone with O-Ring) |
| Body Material: | Steel |
| Maximum Operating Pressure: | 315 bar, 31.5 MPa |
| Connection 1 Size: | -10 (Size), 15.9 mm Hose I.D., 5/8 inch Hose I.D. |
| For Fluid Type: | Air, Water, Hydraulic Fluids on Mineral-oil Basis, Lubricants (Oils), Coolants (Glycol, Water-Glycol), Air (General Industrial Air), Lubricants, Mineral Hydraulic Oil |
| Industry: | Off-road Machinery, Transportation |
| Connection 1 Type: | Hose |
| Brand: | Parker |
| Application: | High Pressure Hydraulics |
| Hex Size: | 32 mm (see drawing legend W) |
| Product Type: | Crimp Fittings No-Skive |
| Technology: | Fluid & Gas Handling |
| Tube Outside Diameter: | 18 mm |
| Fitting Length: | 79 mm (see drawing legend A) |
| Drop Length: | 49 mm (see drawing legend E) |
| Configuration: | Hose to Port |
| Division: | Polymer Hose Division Europe |
| Connection 2 Type: | Female, Metric L, Swivel, 24° Cone (with O-Ring) |
| Shape: | Elbow 90° |
| Shape: | Elbow 90° |
| Port Size: | 18 mm |
| Port Type: | DKOL |
| Port Type: | DKOL |
| Specifications Met: | ISO 12151-2-SWE-L |
| Hose Inside Diameter: | -10 |
| Connection 2 Size: | M26x1.5 mm Thread |
| Connection Length: | 42 mm (see drawing legend B) |
