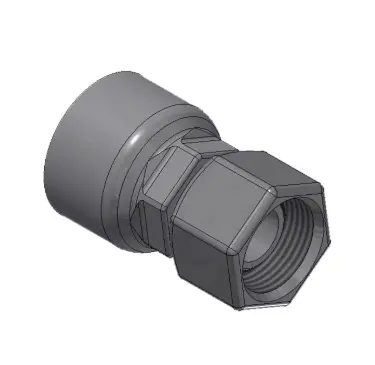

1EA48-16-16
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Product Style: | - |
| Body Material: | Steel |
| Connection 2 Type: | Female BSP Parallel Pipe - Swivel (60° Cone) |
| Maximum Operating Pressure: | 420 bar, 42.0 MPa |
| Connection 1 Size: | 25.4 mm Hose I.D., 1 inch Hose I.D., -16 (Size) |
| Fitting Length: | 66 mm (see drawing legend A) |
| Hex Size 2: | 32 mm (see drawing legend H) |
| Hex Size 1: | 41 mm (see drawing legend W) |
| Brand: | Parker |
| Shape: | Straight |
| Connection Length: | 38 mm (see drawing legend B) |
| Shape: | Straight |
| Division: | Polymer Hose Division Europe |
| Port Size: | 1" |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Port Type: | DKOR |
| Application: | Hydraulics |
| Connection 2 Type: | Female, BSP Parallel Pipe, Swivel, 60° Cone |
| Hose Inside Diameter: | -16 |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | 1"-11 inch Thread |
| Product Type: | Hose Fittings |
| Port Type: | DKOR |
| Body Material: | Steel |
| Specifications Met: | BS 5200, ISO 12151-6 |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| For Fluid Type: | Hydraulic Fluids, Mineral Hydraulic Oil, Coolants (Water-Glycol), Air, Water |
| Coating: | Chromium 6 Free-plated |
