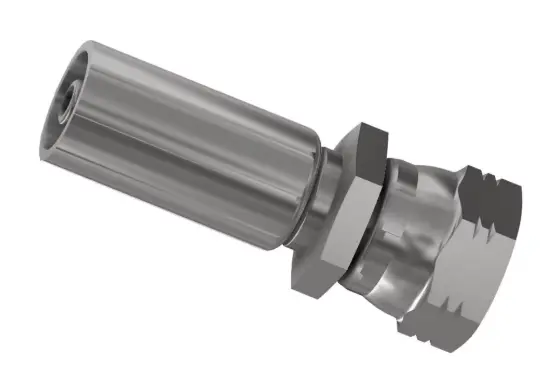

1FU48-8-8
DESCRIPTION:
Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.
Technical Specifications
| Body Material: | Steel |
| Connection 2 Type: | Female BSP Parallel Pipe - Swivel (30° Flare) |
| Product Style: | - |
| Maximum Operating Pressure: | 350 bar, 35.0 MPa |
| Connection Length: | 38 mm (see drawing legend B) |
| Connection 1 Size: | 12.7 mm Hose I.D., 1/2 inch Hose I.D., -8 (Size) |
| Brand: | Parker |
| Shape: | Straight |
| Division: | Polymer Hose Division Europe |
| Shape: | Straight |
| Port Size: | 1/2" |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Port Type: | GUI |
| Application: | Hydraulics |
| Connection 2 Type: | Female, BSP Parallel Pipe, Swivel (30° Flare) |
| Hose Inside Diameter: | -8 |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | 1/2"-14 inch Thread |
| Product Type: | Hose Fittings |
| Port Type: | GUI |
| Body Material: | Steel |
| Specifications Met: | ISO 228-1, JIS B8363 |
| Configuration: | Hose to Port |
| Connection 1 Type: | Hose |
| Hex Size 1: | 27 mm (see drawing legend W) |
| Fitting Length: | n/a (see drawing legend A) |
| For Fluid Type: | Hydraulic Fluids, Mineral Hydraulic Oil, Coolants (Water-Glycol), Air, Water |
| Coating: | Chromium 6 Free-plated |
