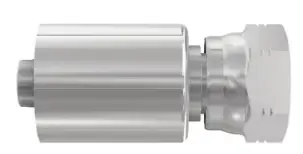

1GU43-20-20C-AV
DESCRIPTION:
1GU43-20-20C is a hydraulic hose crimp fitting, designed for permanent hydraulic hose assemblies. It features a straight female BSPP (British Standard Parallel Pipe) swivel connection with a 60° cone seat and is used with compatible hydraulic hoses in industrial, mobile, marine, construction, and agricultural hydraulic systems
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Part Number | 1GU43-20-20C |
| Series | 43 Series (Parkrimp) |
| Product Type | Hydraulic Hose Crimp Fitting |
| Fitting Style | Straight Swivel Fitting |
| End Connection | Female BSPP (British Standard Parallel Pipe) |
| Sealing Type | 60° Cone Seat |
| Connection Size | 1-1/4" BSPP Thread (1-1/4"-11) |
| Hose Size | 1-1/4" ID Hose (Dash Size -20) |
| Material | Carbon Steel |
| Surface Finish | Chromium-6 Free Plating |
| Assembly Method | Permanent Crimp Type |
| Working Pressure | Up to 3500 psi (depending on hose assembly) |
| Connection Movement | Swivel |
| Approximate Length | 4.07 in (103 mm) |
| Hex Size | 50 mm |
| Compatible Hose Types | Parker No-Skive and Hydraulic Hoses |
| Typical Applications | Hydraulic Power Units, Construction Equipment, Agricultural Machinery, Marine Systems, Industrial Hydraulics |
| Key Features | Leak-resistant design, quick assembly, no-skive technology, durable steel construction |
