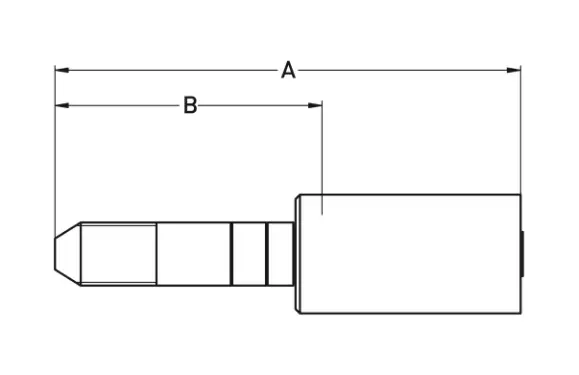

1YALX-1-025C
DESCRIPTION:
High pressure tube nipple UNF – LH thread
TECHNICAL DESCRIPTION:
| Product Style: | High Pressure Tube Nipple UNF – LH Thread |
| Connection Thread Size: | 1/4"-28 |
| Hose I.D. (inch): | 5/32" |
| Style: | High pressure tube nipple UNF – LH thread |
| Shape: | Straight |
| Thread Type: | UNF - LH |
| Hose I.D. (mm): | 4 mm |
| Connection Type: | UNF-LH |
| Hose I.D.: | DN 4 |
| Hose I.D. (size): | -25 |
| Length (mm): | 87 mm |
| Maximum Working Pressure (MPa): | 220.0 MPa |
| Material: | Stainless Steel |
| Maximum Working Pressure (psi): | 31900 psi |
| Fitting Type: | YA |
| Length (inch): | 3.4" |
