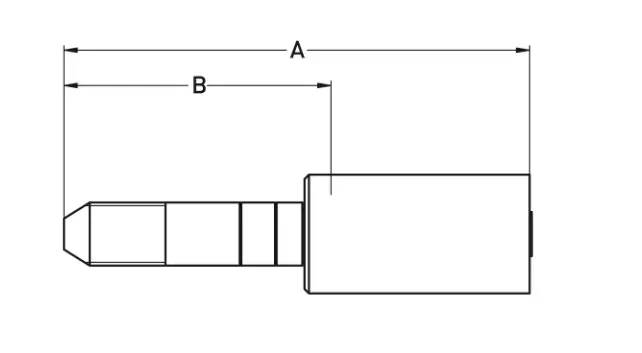

1YALX-6-04
DESCRIPTION :
High pressure tube nipple UNF – LH thread
TECHNICAL DESCRIPTION:
| Style: | High pressure tube nipple UNF – LH thread |
| Product Style: | High Pressure Tube Nipple UNF – LH Thread |
| Hose I.D. (inch): | 1/4" |
| Connection Thread Size: | 9/16"-18 |
| Hose I.D. (mm): | 6.4 mm |
| Hose I.D.: | DN 6 |
| Thread Type: | UNF - LH |
| Shape: | Straight |
| Connection Type: | UNF-LH |
| Hose I.D. (size): | -4 |
| Maximum Working Pressure (MPa): | 164.0 MPa |
| Length (mm): | 112 mm |
| Material: | Special materials |
| Maximum Working Pressure (psi): | 23780 psi |
| Fitting Type: | YA |
| Length (inch): | 4.4" |
