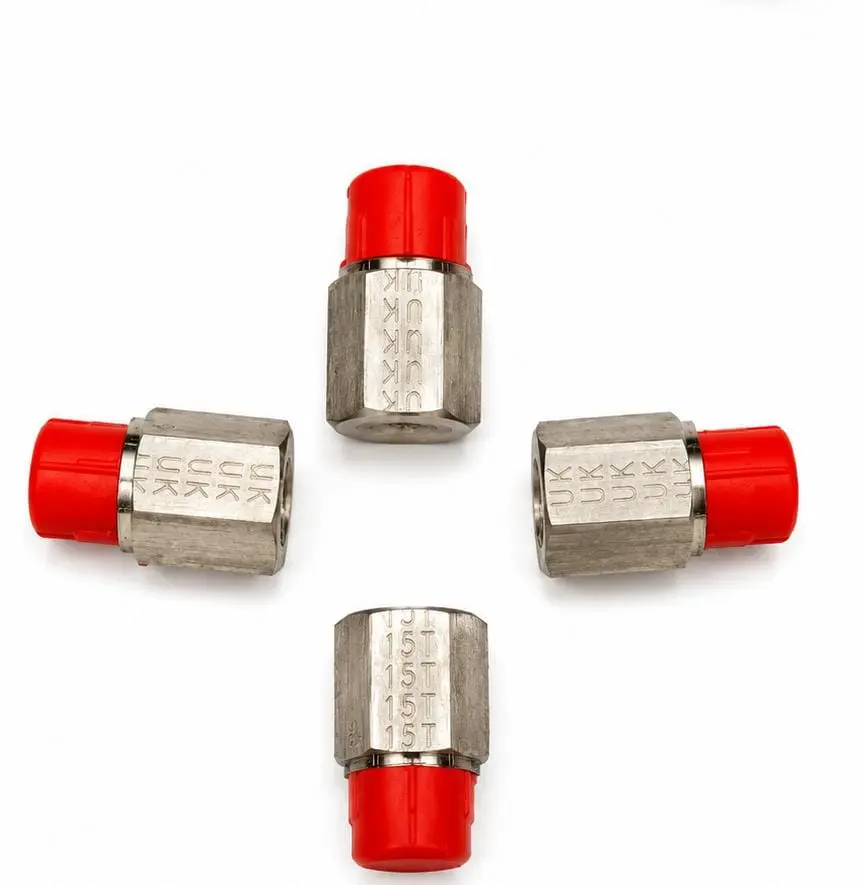

2-2R RA-SS
DESCRIPTION:
Parker ISO Conversion Fittings are designed to the highest quality standards to allow connections between components and systems which use both NPT and ISO Thread configurations. Conversion fittings are maintained under strict quality control programs
TECHNICAL DESCRIPTION:
Connection Type | FNPT x BSPP |
NPT Thread T1 | 1/8-27 |
BSPP Thread T2 | 1/8-28 |
W HEX | 9/16 in |
D | .99 in |
R | .28 in |
Working Pressure (Brass) | 3200 psi220 bar |
Working Pressure (Stainless Steel) | 6100 psi420 bar |
