2000I04N04
DESCRIPTION:

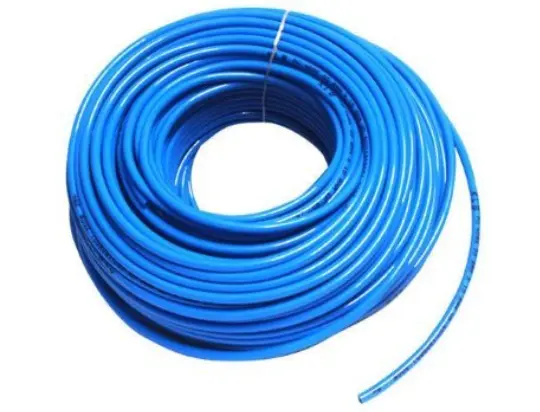

2000I04N04 - PU Tube 4 mm OD x 2.5 mm ID (Blue) is a flexible polyurethane pneumatic tube designed for conveying compressed air and compatible fluids in pneumatic control systems. Its excellent flexibility, abrasion resistance, and kink resistance make it suitable for industrial automation, machine tools, robotics, and general pneumatic applications.
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Product Code | 2000I04N04 |
| Product Type | Polyurethane (PU) Pneumatic Tube |
| Outer Diameter (OD) | 4 mm |
| Inner Diameter (ID) | 2.5 mm |
| Wall Thickness | 0.75 mm |
| Colour | Blue |
| Material | Polyurethane (PU) |
| Tube Construction | Single-layer flexible tubing |
| Medium | Compressed air, pneumatic fluids (compatible media) |
| Flexibility | High flexibility with excellent bend radius |
| Abrasion Resistance | Excellent |
| Kink Resistance | High |
| Chemical Resistance | Resistant to oils, greases, and many industrial fluids |
| Temperature Range | Typically -20°C to +60°C (application dependent) |
| Operating Pressure | Depends on temperature and system design |
| Application | Pneumatic automation, air lines, control circuits, robotics, packaging machines |
| Installation | Suitable for push-in pneumatic fittings |
| Features | Lightweight, durable, flexible, easy routing, long service life |
