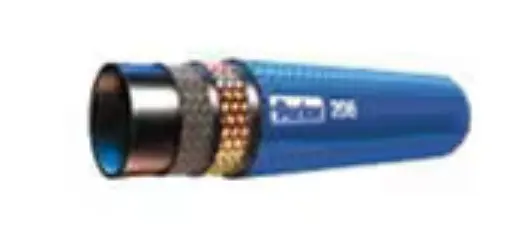

206-16
DESCRIPTION:
Parker's 206 hose is a transportation hose that has a pressure range of 350-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications.
DESCRIPTION:
| Hose Reinforcement Material: | Braid of Fiber, 1 Braid of Fiber and 1 Braid of Steel Wire |
| Hose I.D. (size): | -16 |
| Media: | Fuels (Diesel Fuels & Antifreeze Solutions), Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum Base) |
| Specifications Met: | D.O.T. FMVSS 106, Class AII Air Brake, SAE 100R5, SAE J1402, Class AII |
| Compatible Fitting: | 26 Series, 20 Series, 22 Series |
| Weight: | 0.68 kg/m, 0.46 lb/ft |
| Inside Diameter: | 7/8 inch, 22 mm |
| Maximum Operating Pressure: | 5.6 MPa, 800 psi |
| Nominal Hose Inside Diameter: | 22 mm |
| Outside Diameter: | 1.230 inch, 31 mm |
| Application: | Antifreeze Solutions, Diesel Fuels, Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Inner Tube Material: | PKR® Rubber |
| Cover Color: | Blue |
| Cover Material: | Braid of Fiber |
| Minimum Bend Radius: | 4 inch, 100 mm |
| Minimum Operating Temperature: | -55 °F, -48 °C |
| Maximum Operating Temperature: | 302 °F, 150 °C |
