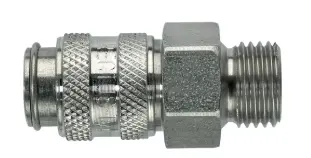

21KAAW13MPN
DESCRIPTION:
Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.
Technical Specifications
| Body Material: | Brass |
| Coupling Half: | Coupler |
| Connection Size: | G 1/4 |
| Function: | Single Shut-Off |
| For Fluid Type: | Water (Industrial, drinking, treated water), Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Weight: | 0.034 kg |
| Product Series: | Series 21 |
| Diameter: | 5 mm (nominal) |
| Flow Rate: | 550 L/min (air), 7 L/min (water) |
| Industry: | Electronics, General Industrial, Healthcare & Life Sciences, Transportation |
| Interchange Type: | European Profile |
| Brand: | Parker, Rectus |
| Connection Size: | G 1/4 |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Compatible Fitting: | Series 21 Plug |
| Shape: | Straight |
| Application: | Energy Management, Electronics, Food & Beverages, Air & Gas Compressor, Industrial Machinery, Textile Machinery, Medical, Pharma, Safety & Rescue, Trucks & Trailers |
| Hex Size: | 17 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Male, BSPP ISO 228 Parallel |
| Valve Included: | Yes |
| Technology: | Pneumatics, Fluid & Gas Handling |
| Function: | Single Shut-Off |
| Sleeve Material: | Brass |
| Valve Type: | Standard Valve |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Nickel-plated |
| Body Material: | Brass |
| Operation Type: | Sleeve |
| Region of Origin: | Germany |
| Product Style: | Quick-Connect |
| Quantity per Box: | 10 |
| Outside Diameter: | 16 mm |
| Coupling Half: | Coupler |
| Seal Material: | NBR |
| Connection Type: | Male BSPP |
