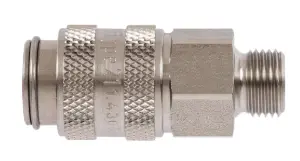

21KBAW17EVX
DESCRIPTION:
Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.
Technical Specifications
| Body Material: | Stainless Steel 316L |
| Coupling Half: | Coupler |
| Function: | Double Shut-Off |
| Connection Size: | G 3/8 |
| For Fluid Type: | Water (Industrial, drinking, treated water), Chemicals (Paints, solvents, lubricants), Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Weight: | 0.041 kg |
| Product Series: | Series 21 |
| Diameter: | 5 mm (nominal) |
| Flow Rate: | 2.7 L/min (water), 310 L/min (air) |
| Industry: | Electronics, General Industrial, Healthcare & Life Sciences, Transportation |
| Interchange Type: | European Profile |
| Brand: | Parker, Rectus |
| Connection Size: | G 3/8 |
| Maximum Operating Temperature: | 200 °C, 302 °F |
| Minimum Operating Temperature: | -15 °C, 5 °F |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Compatible Fitting: | Series 21 Plug |
| Shape: | Straight |
| Application: | Energy Management, Electronics, Food & Beverages, In-Plant Automotive, Industrial Machinery, Laboratory, Diagnostics, Pharma, Trucks & Trailers |
| Hex Size: | 19 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Male, BSPP ISO 228 Parallel |
| Valve Included: | Yes |
| Technology: | Pneumatics, Fluid & Gas Handling |
| Function: | Double Shut-Off |
| Valve Type: | Standard Valve |
| Sleeve Material: | Stainless Steel 316L |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Without Surface Treatment |
| Body Material: | Stainless Steel 316L |
| Operation Type: | Sleeve |
| Region of Origin: | Germany |
| Product Style: | Quick-Connect |
| Quantity per Box: | 2 |
| Outside Diameter: | 16 mm |
| Coupling Half: | Coupler |
| Seal Material: | FKM |
| Connection Type: | Male BSPP |
