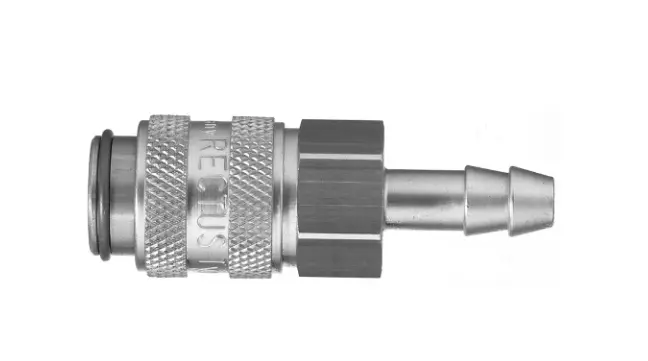

21KSTF04MPX
DESCRIPTION:
Parker’s Series 21 is a mini-industrial coupling with European profile. Coupling system with single-hand operation. Above average flow performance for liquid and gaseous media.
TECHNICAL DESCRIPTION:
| Body Material: | Brass |
| Function: | Single Shut-Off |
| Connection Size: | 4 MM |
| Coupling Half: | Coupler - Safety |
| Weight: | 0.001 kg |
| Product Series: | Series 21 |
| Diameter: | 5 mm (nominal) |
| Flow Rate: | 550 L/min (air), 7 L/min (water) |
| Industry: | General Industrial, Healthcare & Life Sciences |
| Interchange Type: | European Profile |
| Brand: | Parker, Rectus |
| Connection Size: | 4 mm |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Compatible Fitting: | Series 21 Plug |
| Application: | Industrial Machinery, Medical, Air & Gas Compressor, Safety & Rescue |
| Hex Size: | 14 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Hose Barb |
| Valve Included: | Yes |
| Technology: | Fluid & Gas Handling, Pneumatics |
| Function: | Safety (single shut-off) |
| Valve Type: | Standard Valve |
| Sleeve Material: | Brass |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Without Surface Treatment |
| Body Material: | Brass |
| Operation Type: | Sleeve |
| Region of Origin: | Germany |
| Product Style: | Quick-Connect |
| Quantity per Box: | 5 |
| Outside Diameter: | 16 mm |
| Coupling Half: | Coupler |
| Seal Material: | NBR |
| For Fluid Type: | Air & Neutral Gases (Industrial compressed, lubricated air, inert gases), Water (Industrial, drinking, treated water) |
| Shape: | Straight |
| Connection Type: | Hose Barb |
